MIP-1300![[Product Image]](BANDING%20PICS/MIP-1300.JPG)
|
|
 MIP-1300
TENSIONER |
|
Feedwheel Steel Strap Tensioner |
|
Strap Gauge Range (.015 to .025) |
|
Strap Width Range (3/8" to 3/4") |
|
|

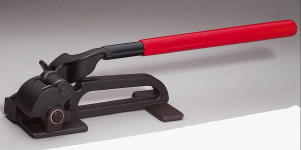

MIP-1400
![[Product Image]](BANDING%20PICS/MIP-1400.JPG) |
|
MIP-1400
TENSIONER |
|
Heavy Duty Feedwheel Steel Strap
Tensioner |
|
Strap Gauge Range (.025 to .044) |
|
Strap Width Range (3/4" to 1-1/4") |
|
|
MIP-1100
![[Product Image]](BANDING%20PICS/MIP-1100.JPG) |
|
MIP-1100 SEALER |
|
Regular
Duty Steel Strap Sealer |
|
Double
Notch * Down Cut * Front Action |
|
Strap
Gauge Range (.015 to .023) |
|
Available
sizes (1/2", 3/8", 5/8" and 3/4")
|
|
|
|

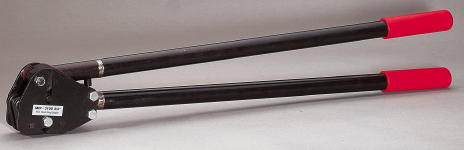

MIP-3100
![[Product Image]](BANDING%20PICS/MIP-3100.JPG) |
|
MIP-3100
SEALER |
|
Heavy
Duty Steel Strap Sealer |
|
Double
Notch * Up Cut * Side Action |
|
Strap
Gauge Range (.025 to .044) |
|
Available
Sizes (3/4", 1" and 1-1/4") |
|
|
|
|
|
MIP-2100
![[Product Image]](BANDING%20PICS/MIP-2100.JPG)
|
|
MIP-2100
SEAL SHEAR |
|
Regular
Duty Economy Steel Strap Cutter |
|
Strap
Gauge Range (.015 to .031) |
|
Strap
Width Range (3/8" to 3/4") |
|
|
|
MIP-6200
![[Product Image]](BANDING%20PICS/MIP-6200.JPG) |
|
MIP-6200
DISPENCER |
|
Heavy Duty Ribbon Wound Steel Strap
Dispenser w/ Strap Troller |
|
Holds 3/4", 1-1/4" and 2" Strap |
|
|
|
8" Wheels |
|
|
MIP-5200
![[Product Image]](BANDING%20PICS/MIP-5200.JPG)
|
|
MIP-5200
DISPENCER |
|
Heavy Duty Steel and Poly Strap
Dispenser |
|
One Size Fits 16 x 3 and 16 x 6 |
|
|
|
10" Wheels * Oscillated
Mill Wound Strap |
|
Steel Strapping Seal Specifications
|
|
|
STRAP WIDTH |
ITEM NO. |
SEAL NO. |
SEAL LENGTH |
STD PKG. |
WEIGHT POUNDS |
|
Open (Snap-on) |
|
3/8 |
150000 |
301 |
1" |
5,000 |
23 |
|
1/2 |
154000 |
401 |
1" |
5,000 |
31 |
|
5/8 |
158000 |
501 |
1" |
5,000 |
38 |
|
3/4 |
164000 |
601 |
1" |
5,000 |
40 |
|
|
Regular Duty Steel Banding Description
|
|
Width |
Thickness |
Avg.
Strength |
Yield |
Coil
Winding |
Finish |
|
Inch |
Inch |
Pounds |
Ft./lb |
Osc. |
Ribbon |
Painted |
|
1/2 |
.020 |
1170 |
29.4 |
X |
|
X |
|
5/8 |
.020 |
1460 |
23.6 |
X |
|
X |
|
3/4 |
.020 |
1760 |
19.6 |
X |
|
X |
|
|
Oscillated
Wound
Regular duty
strapping
is a low carbon, cold rolled steel
strapping manufactured with close
tolerances in order to conform with US
government specifications. This
strapping meets the requirements for
general applications and can be used in
both manual and combination |
|
|
|
High Tensile Steel Banding Description
|
|
|
|
Ribbon
Wound
High Tensile
strapping
is a specially blended cold rolled steel
product that is heat treated and quickly
cooled to give maximum elongation for
high shock specifications. Our high
tensile steel strapping conforms
to government specifications and is
approved by the American Association of
Railroads (AAR). This strapping is used
where high elongation is required. Many
heavy duty applications such as load
dumping, structural steel
transportation, and banding of heavy
coils are good examples. |
|
|
Also Polystrap Kits in Stock
1/2" x 3000' Kits w/ buckles
CALL FOR PRICING
|
